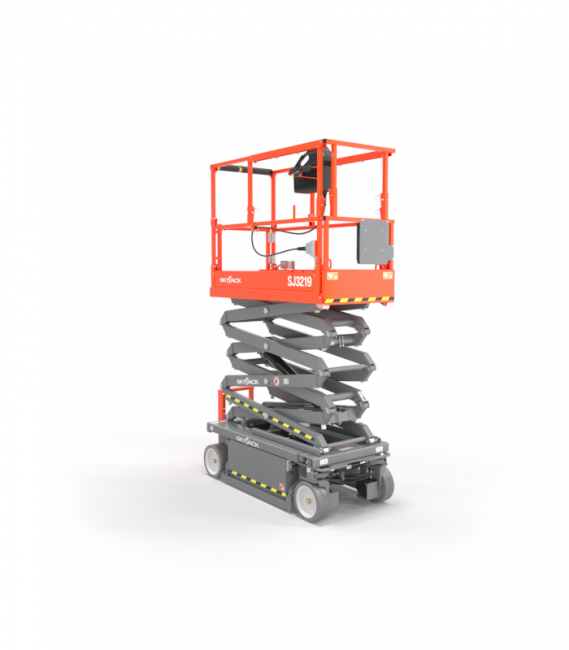

Scissor Lift - 19' Height

Rental Rates

Description

If unit is rented for paint work, unit must be returned clean to avoid extra charges.

Designed for interior slab on grade use only (such as a warehouse).
This personnel lift is designed for flat interior surfaces with a slope of NO MORE THAN 1.5 degrees side to side (1/4 inch per foot of slope) or 3 degrees front to back (1/2 inch per foot of slope).
The solid steel deck platform has a slip-resistant surface.
Heavy duty tubular steel guardrails maximize durability. Telescopic end rail can be raised to accommodate large loads.
Lubrication-free, service-free pivot points.
Built-in lanyard attachment points.
The ergonomic Joystick Controller operates from the platform or the ground.
Low noise level allows operation in quiet work environments.
High angle steering provides excellent maneuverability.
Swing-out battery box and power module allow easy access to componentry.
Variable speed motor extends battery and motor life by using only the energy needed to do the required work. On-board troubleshooting diagnostics notify the operators of possible fault conditions.

Standards Compliance

Features

Model	GS-1530		GS-1930
	USA	Metric	USA	Metric
Working Height	21 ft.	6.5 m	25 ft. 1 in.	7.8 m
Platform floor height	15 ft.	4.6 m	19 ft. 1 in.	5.8 m
Height - stowed (guardrails) (ANSI CSA)	76 in	1.93 m	82 ? in.	2.1 m
Height - stowed (platform)	36 ? in.	93 cm	38 ? in.	98 cm
Length - Stowed	72 in.	1.83 m	72 in	1.83 m
Width	30 in.	76 cm	30 in.	76 cm
Wheelbase	52 in	1.32 cm	52 in.	1.32 cm
Ground Clearance	2 5/8 in	7 cm	2 5/8 in	7 cm
Ground Clearance - pothole guards deployed	7/8 in	2 cm	7/8 in	2 cm
Platform length - outside	64 3/8 in	1.64 m	64 3/8 in.	1.64 m
Platform width - outside	64 3.8 in.	1.64 m	64 3/8 in.	1.64 m
Platform length - extended	103 3/8 in	2.63 m	103 3/8 in.	2.63 m
Guardrail height ANSI, CSA CE	39 in. 43-3/8 in.	1 m 1.1 m	39 in. 43-3/8 in.	1 m 1.1 m
Toeboard height	6 in.	15 cm	6 in.	15 cm
Turning radius - outside	61 in.	1.55 m	61	1.55 m
Turning radius - inside	zero		zero
Power source	24V (4 6V 245 AH batteries) (both models)
Drive speed - stowed	0 - 2.5 mph	0- 4 km/h	0 - 2.5 mph	0 - 4 km/h
Drive speed - raised	0 - 0.6 mph	0 -1 km/h	0 - 0.6 mph	0 -1 km/h
Elevate/lower speed	16 / 17 sec.		16 / 23 sec.
Proportional controls	standard		standard
Tires (solid rubber)	12 x 4.5 x 8 in / 30 x 11 x 20 cm (both models)
Gradeability	30%		30%
Drive	dual front wheel		dual front wheel
Multiple disk brakes	dual rear wheel		dual rear wheel
Pothole protection	standard		standard
Weight	2,658 lbs.	1,206 kg	2,658 lbs.	1,206 kg
